Specifications

MicroSearch is available in a variety of configurations to meet your unique requirements.

Both the Wired and Wireless and the Standard and Enhanced MicroSearch Systems offer an identical configuration, with the only exception being the number of Ground Sensors used in the Enhanced System and the system is either configured Wired or Wireless.

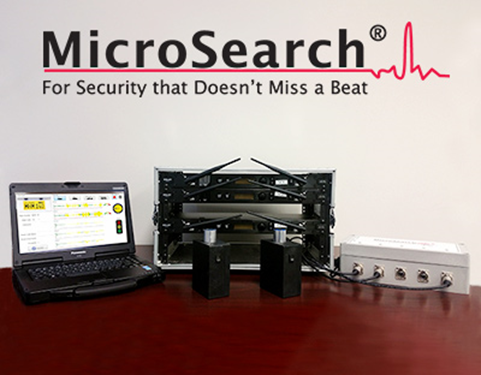

MicroSearch Wireless Vehicle Sensors, Control Box and Laptop

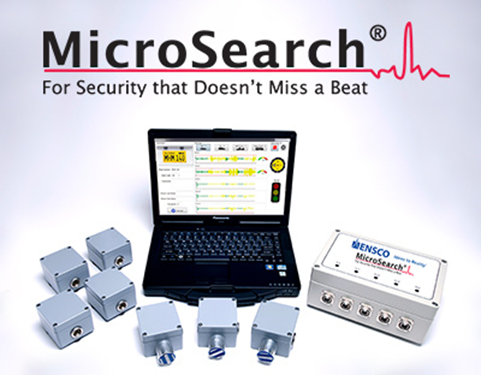

MicroSearch Enhanced Wired Sensors, Control Box and Laptop with Spare Vehicle and Ground Sensor

MicroSearch Contactless Vehicle Sensor (CVS) for Human Detection

Introducing the Next-Generation of MicroSearch Vehicle Sensor: Increased Safety and Portability for Inspectors

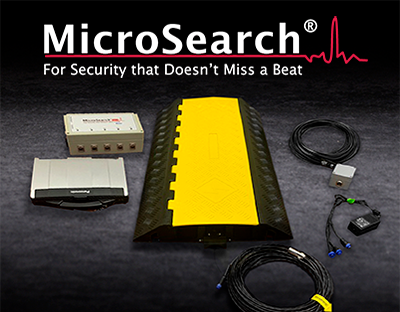

MicroSearch Contactless Vehicle Sensor (CVS) – Full System

The MicroSearch Contactless Vehicle Sensor (CVS) is the next generation of vehicle sensor and the only product on the market that provides an advanced contactless system designed to enhance inspector safety and provide even greater portability. All MicroSearch products are known throughout the industry for having the highest degree of accuracy, reliability, cost-efficiency and durability. With the introduction of the CVS, MicroSearch will continue with an uncompromised track record as the industry leader.

MicroSearch CVS incorporates an RF sensor with custom-designed electronics. The operational system is enclosed in a ruggedized and waterproof sensor housing, making it suitable for outdoor use in all climates.

The CVS was developed to allow the MicroSearch system operator the ability to inspect a vehicle to determine the presence of unauthorized persons without having to physically attach sensors directly to the vehicle. MicroSearch CVS provides the same level of effectiveness, accuracy and ease of use that customers depend on with increased flexibility for the inspector.

MicroSearch CVS Technical Features

The sensor can be deployed either in a provided speed reduction enclosure (essentially a speedbump) or embedded below surface.
Two vehicle sensors are needed to be connected to the system to conduct an inspection.
The two sensors should be set in place to accommodate the largest vehicle expected to be tested.
The test can then be conducted as is currently done with the Wired Vehicle Sensor and the Wireless Vehicle Sensor versions.
The CVS requires the vehicle to be turned off and all authorized persons to disembark the vehicle, as with other MicroSearch sensors.

MicroSearch CVS Technical Data

Low power motion detector working in the 24GHz – ISM – Band
Dimensions (including speed reduction/protection device): 38in x 20in x 3in (96.5cm x 51cm x 8cm)
Speed Reduction/Protection Device max. weight capacity: 26,000 per axle
Cable Length: 50ft (15m)
Power Requirement: 100 – 240VAC, 50/60Hz
Operating Temperature: -20oC – 60oC
Storage Temperature: -20oC – 60oC
Electrical components protected by high temperature epoxy and potting compound.
Provides electrical insulation and protects components from environmental concerns.

MicroSearch Cable Management Systems for Wired Configurations

MicroSearch comes with optional cable management systems as pictured above and supports up to five Wired Vehicle and Ground Sensors in a NEMA certified enclosure, making inspection setup and operations simple and safe.
